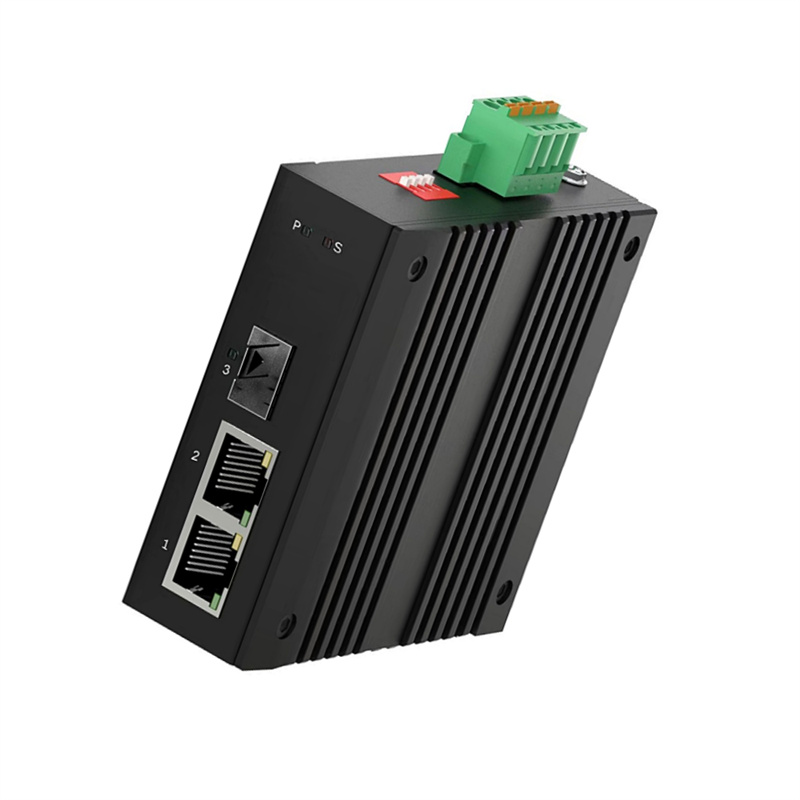

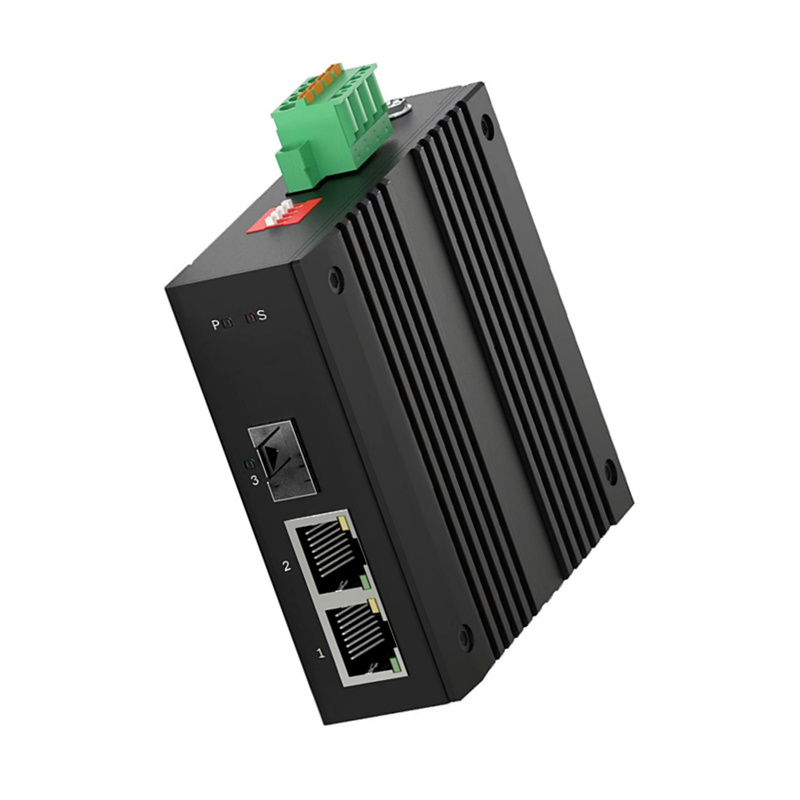

2*10/100Base-TX to 1*100Base-FX Industrial Media Converter
Feature:
1). 2*10/100Base-TX RJ45 port, 1*100Base-FX SC/SFP(FC or ST is optional) fiber port.
2). 12-58VDC input, redundant power supply with polarity reverse/over-voltage protection.
3). Dip switch function: 1). LFP, 2). Flow control, 3). Broadcast storm restrain, 4). 10K bytes jumbo frame.
4). Support watchdog, it can reboot automatically if the device is frozen.
5). Support 4kV surge protection, 15kV ESD(air) protection, 8kV contact protection.
6). IP40 fan-less aluminum alloy housing and DIN-Rail hardware design with compact size(30*85*85mm).
7). Operating temperature: -40℃ to 75℃.
Overview:
The FlyingFiber FF-IMC0102F is the unmanaged industrial grade media converter with 2-port 10/100Base-TX RJ45 and 1-port 100Base-FX SC/SFP(FC or ST is optional) fiber optical interface. It is featuring with LFP, flow control, broadcast storm restrain and 10K bytes jumbo frame function, which all can be configured by the Dip switch on the top panel.
FF-IMC0102F series are also high cost-effective easy-to-use device, which provide essential industrial Ethernet networking function, such as wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less compact size housing with DIN-Rail installation, wide operating temperature from -40℃ to 75℃as well as high-level EMI/EMC capability etc. They are the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP surveillance and processing automation area where environmental conditions exceed commercial product specifications.
Technical Specification:
|
Interface |
Fiber port |
Ethernet (RJ45) port |
||
|
1 |
2 |
|||
|
2*10/100Base-TX RJ45 port 1*100Base-FX SC/SFP(FC or ST is optional) fiber port |
||||
|
Standard |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet |
|||
|
Dip Switch |
1). LFP 2). Flow control 3). Broadcast storm restrain 4). 10K bytes jumbo frame |
|||
|
LED Indicator |
P(Power indicator) Green |
Off: the device is power off or failed |
||
|
On: the device power on is normal |
||||
|
S(System indicator) Red |
Off: the chip is normal |
|||
|
On: the chip read/write is unnormal |
||||
|
1-2(RJ45 port) |
Green indicator |
Yellow indicator |
||
|
Off: port link down |
Off: port speed is 10M |
|||
|
On: port link up |
On: port speed is 100M |
|||
|
Blinking: data on TX/RX |
||||
|
3(Fiber port) Green |
Off: port link down |
|||
|
On: port link up |
||||
|
Blinking: data on TX/RX |
||||
|
Power Parameter |
||||
|
Input voltage |
12-58VDC, redundant power input |
|||
|
Input current |
0.2A Max |
|||
|
Total power consumption |
Full loading ≤2.5W |
|||
|
Connector |
Removable 4-pin terminal block |
|||
|
Reverse polarity protection |
Support |
|||
|
Over-voltage protection |
Support |
|||
|
Switching Feature |
||||
|
Switching capacity |
1.0G |
|||
|
Packet forwarding rate |
0.744 Mpps |
|||
|
MAC address table |
2K |
|||
|
VLAN |
2K |
|||
|
Buffer |
1M |
|||
|
Forwarding delay |
<10us |
|||
|
Jumbo frame |
Support 10K bytes |
|||
|
MDX/MIDX |
Support |
|||
|
Watchdog |
Support |
|||
|
Network Topology |
||||
|
Star topology |
Support |
|||
|
Bus topology |
Support |
|||
|
Tree topology |
Support |
|||
|
Mechanical Structure |
||||
|
IP grade |
IP40 |
|||
|
Installation method |
DIN-Rail |
|||
|
Dimension(W*D*H)mm |
30*85*85mm |
|||
|
Weight |
0.35 kg |
|||
|
Operating Environment |
Operating temperature: -40℃ to 75℃ Storage temperature: -40℃ to 85℃ Relative humidity: 5% to 95%(non-condensing) |
|||
|
Industrial Standard |
Surge protection of power: IEC 61000-4-5 Level 3(4kV/2kV, 8/20us) Surge protection of Ethernet port: IEC 61000-4-5 Level 3(4kV/2kV, 10/700us) DIP: IEC 61000-4-11 Level 3(10V) ESD: IEC 61000-4-2 Level 4(8kV/15kV) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|||
|
Certification |
CE, FCC, RoHS |
|||
|
Warranty |
5 years |
|||

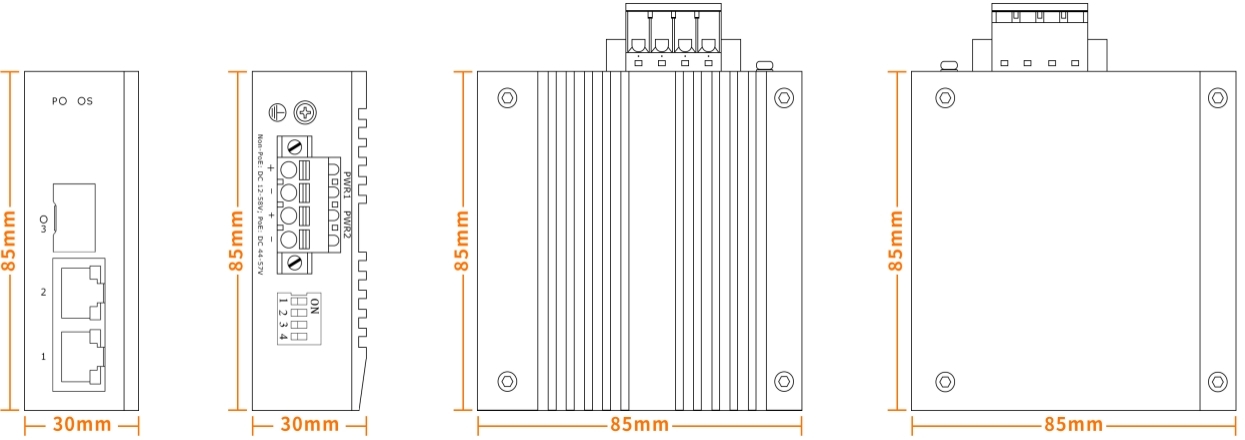

Structure Diagram:
Order Information:
|
Model No. |
Description |
|
FF-IMC0102F-SFP |
Industrial media converter, 2*10/100Base-TX RJ45 port and 1*100Base-X SFP slot, DIN-Rail, 12-58VDC, -40°C to 75°C operating temperature(Fiber port transmission distance depending on the SFP module) |
|
FF-IMC0102F-SC |
Industrial media converter, 2*10/100Base-TX RJ45 port and 1*100Base-FX SC port, Multi-mode/Single mode/dual fiber/single fiber, 2Km, 20/40/60/80/100/120Km are optional, DIN-Rail, 12-58VDC, -40°C to 75°C operating temperature |
|
FF-IMC0102F-FC |
Industrial media converter, 2*10/100Base-TX RJ45 port and 1*100Base-FX FC port, Multi-mode/Single mode/dual fiber/single fiber, 2Km, 20/40/60/80/100/120Km are optional, DIN-Rail, 12-58VDC, -40°C to 75°C operating temperature |
|
FF-IMC0102F-ST |
Industrial media converter, 2*10/100Base-TX RJ45 port and 1*100Base-FX ST port, Multi-mode/Single mode/dual fiber/single fiber, 2Km, 20/40/60/80/100/120Km are optional, DIN-Rail, 12-58VDC, -40°C to 75°C operating temperature |
